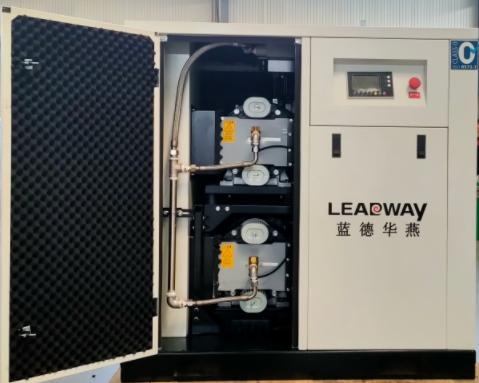

Model

AS11-8 PM VSD

Operation control mode

automatic

Rated pressure             (MPa)

0.8

Air flow                 (M³/min)

1225

Running speed             ( R/min)

2900±50

Exhaust air temperature      ( ℃  )

≤ambient temperature  +18 ℃

Exhaust outlet diameter      ( Inch )

1”

Volume of the air tank        ( L)

/

Noise                     dB(A)

59

Type of motor

Permanent magnetic VSD motors

Motor rated output          ( KW)

11KW (5.5KW/7.5HP x 2)

Motor frequency            ( HZ )

50

Motor voltage              ( V )

380

Dimension ( L xW x H )              (MM )

980 * 660 * 1200 mm

Weight                   ( KG )

250
