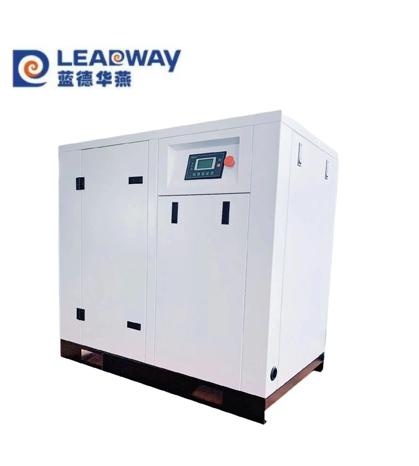

Model

HK-Z08/08-S1

Operation control mode

automatic

Max pressure             (MPa)

0.8/1.0

Air flow                 (M³/min)

0.8

Running speed             ( R/min)

2900±50

Drive mode

Belt drive

Exhaust outlet diameter      ( Inch )

1”

Noise                     dB(A)

60±2

Type of motor

Three-phase asynchronous motors

Motor rated output          ( KW)

7.5KW/10HP（3.7kw/5hp x 2 )

Motor frequency            ( HZ )

50

Motor voltage              ( V )

380

Dimension ( L xW x H )              (MM )

1140*700*1100

Weight                   ( KG )

350
