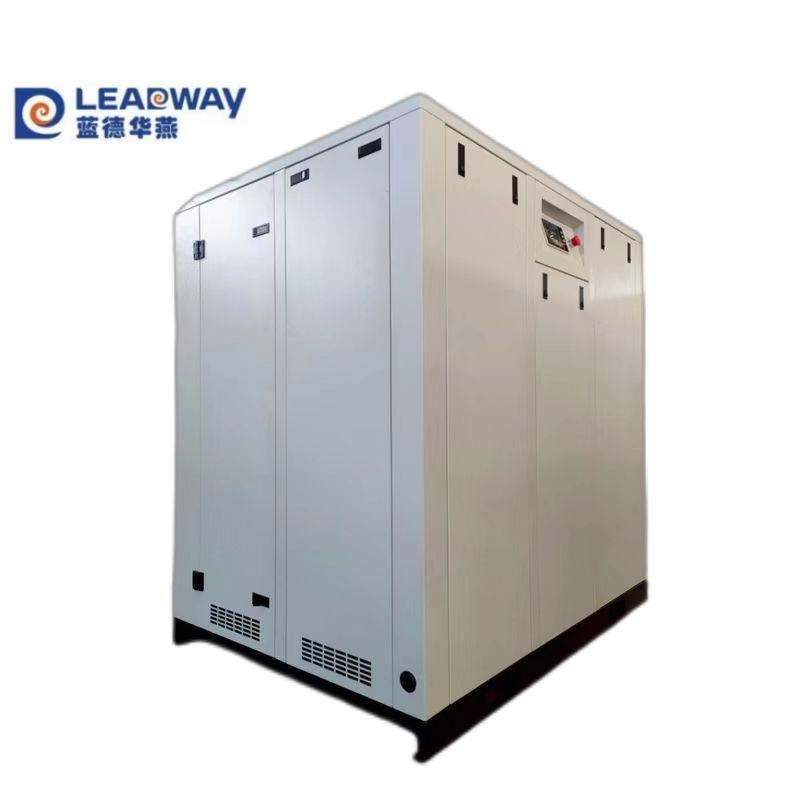

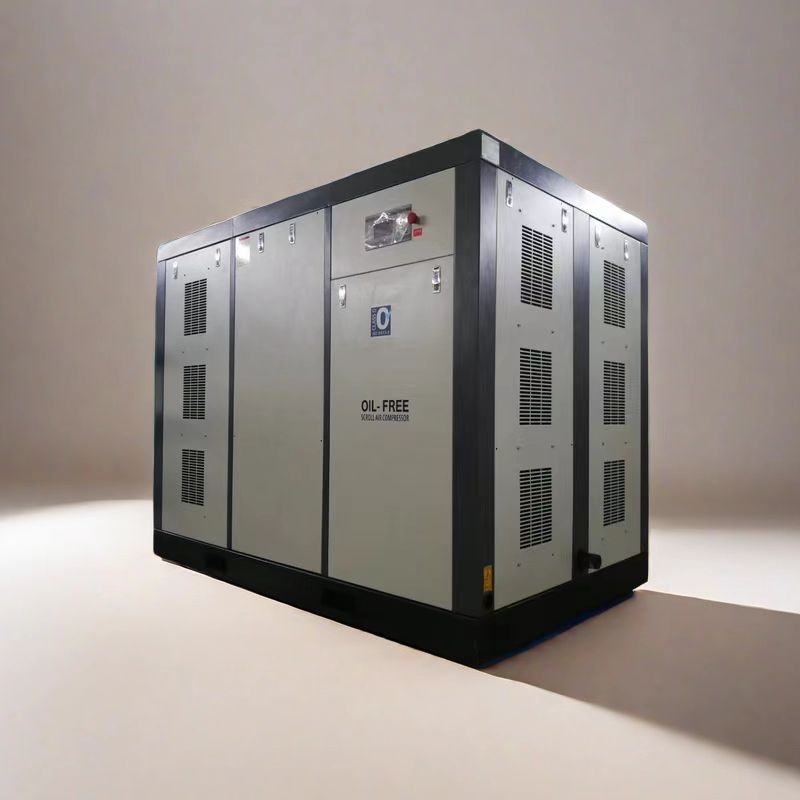

  • 27.5kw 3M³/min Oil less scroll air compressor
  • 27.5kw 3M³/min Oil less scroll air compressor
27.5kw 3M³/min Oil less scroll air compressor 27.5kw 3M³/min Oil less scroll air compressor

27.5kw 3M³/min Oil less scroll air compressor

Oil-free air compressor,  Low noise Food-grade compressor,  scroll compression technology not screw, good use for Instrumentation air, Optical manufacturing,Packaging industry, Textile manufacturing, Aeration systems, Environmental monitoring




Model

HK-Z30/08-S1

Operation control mode

automatic

Max pressure             (MPa)

0.8/1.0

Air flow                 (M³/min)

3.0

Running speed             ( R/min)

2900±50

Drive mode

Belt drive

Exhaust outlet diameter      ( Inch )

1”

Noise                     dB(A)

65±2

Type of motor

Three-phase asynchronous motors

Motor rated output          ( KW)

27KW/37HP（5.5kw/7.5hp x 5 )

Motor frequency            ( HZ )

50

Motor voltage              ( V )

380

Dimension ( L xW x H )              (MM )

1550*1140*1575

Weight                   ( KG )

1080
Product features

Oil-free: independent compression chamber, no lubricating medium in the chamber, clean
compressed air.

Quiet : no contact between the orbiting scroll and fixed scroll, low vibration, low noise.

Energy-saving : continuous compression of the scroll, less invalid work.

Product advantages

High reliability: high precision core components, high requirement bearings,few parts.

Small size: small radius of rotation, high speed,compact structure

Lightweight: orbiting scroll, fixed scroll and frame are made of aluminum alloy.

Low operating cost: few wea ring parts, no cooling oil, no oil-gas separation system,low maintenance cost;
High efficiency: continuous compression,less leakage, there is not much difference in displacement between low and high pressure

Convenience of use: few maintenance ,easy maintenance, no need warm-up in winter.

Third-party test: products pass EMC, vehicle compressors pass IP68 and EMC;

Widely replace imported machines
