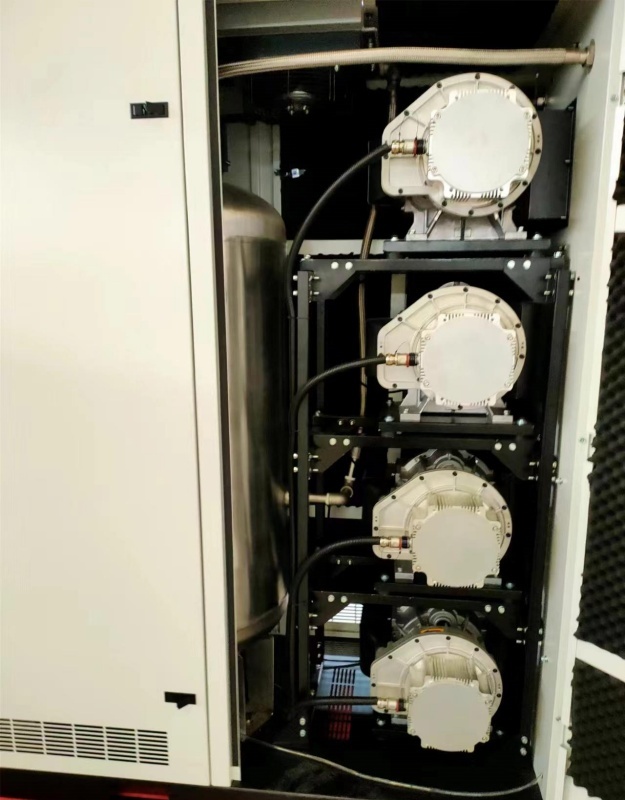

15kw Permanent magnetic VSD oil free scroll compressor
- Product No.：202412516254
HK-Z16/08-S1 15kw Permanent magnetic VSD
Oil-Free Scroll Air Compressor
Oil-Free Scroll Air Compressor
| Model | HK-Z16/08-S1 |
| Operation control mode | AUTO |
| Rated pressure (MPa) | 0.8 |
| Maximum pressure ( MPa) | 1.0 |
| Air flow (M³/min) | 1.6 |
| Running speed ( R/min) | 2950 |
| Drive mode | Belt drive |
| Exhaust air temperature ( ºC ) | ≤ambient temperature + 8 ºC |
| Exhaust outlet diameter ( Inch ) | 1” |
| Volume of the air tank ( L) | / |
| Noise dB(A) | 65±2 |
| Type of motor | Permanent magnetic motors |
| Motor rated output ( KW) | 15KW/20HP |
| Motor frequency ( HZ ) | 50 |
| Motor voltage ( V ) | 380 |
| Dimension (MM ) | 850*650*1900 |
| Weight ( KG ) |
450 |
