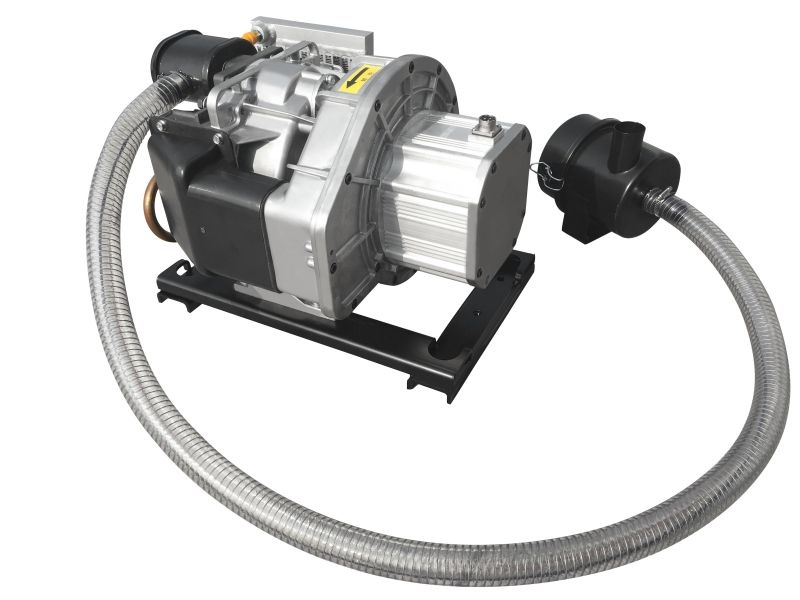

Electric vehicles air Compressor Air Pump

Electric vehicles (electric buses, school buses, trucks, New Energy Buses,Mine vehicles,tractor,Electric loader) air Compressor Air Pump

-Large air flow

-Light weight

-Convenient maintenance

-Cold start without worry

-Low compressed air temperature

-No risk of motor start-up failure

-High performance and

environmentally friendly

Model	LD25027	LD30030	LD40040	LD50050
Type of motor	Permanent magnet synchronous AC motor
Rated power	2.7KW	3KW	3.7KW	5KW
Input power	AC380V/3phase	AC380V/3phase	AC380V/3phase	AC380V/3phase
Rated speed	2650r/min	2650r/min	2850r/min	2850r/min
Start mode	Direct start, no warm-up required
Air flow	0.25m³ /min	0.3m³ /min	0.35m³ /min	0.48m³/min
Rated working pressure	1.0Mpa	1.0Mpa	1.0Mpa	1.0Mpa
Maximum pressure	1.2Mpa	1.2Mpa	1.2Mpa	1.2Mpa
Relief valve start pressure	1.21Mpa	1.21Mpa	1.21Mpa	1.21Mpa
Oil content (PPM)	0	0	0	0
Cooling mode	air cooling
Exhaust air temperature	＜70℃	＜70℃	＜70℃	＜70℃
Protection level	IP68	IP68	IP68	IP68
Noise	74db	74db	75db	77db
Working environment temperature	-30℃~50℃	-30℃~50℃	-30℃~50℃	-30℃~50℃
Temperature sensor	built-in	built-in	built-in	built-in
Check valve	built-in	built-in	built-in	built-in
Dimensions (L x W xH)	452x367x355	452x367x355	452x367x355	490x460x420
Weight	35Kg	35Kg	35Kg	45.5Kg
Applicable models	Buses under 8 meters	Buses under 8.5meters	10.5&12meters buses	18 meters buses
