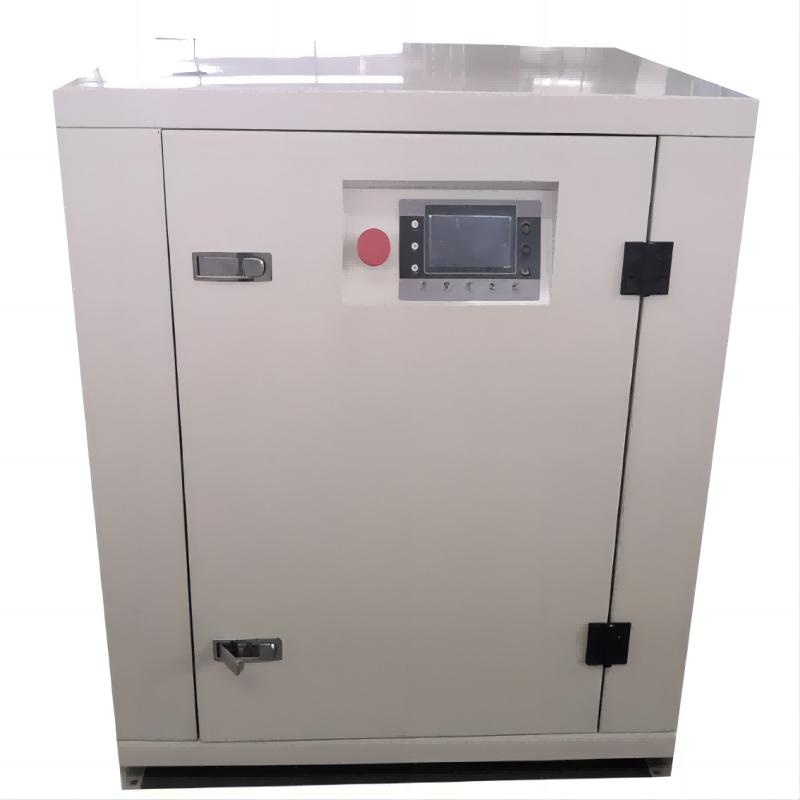

3.7KW/5HP Dental Medical Oil Free Scroll Air Compressor

Product No.：202392616913
Online Inquiry

Oil Free Air Compressor with Ce

Model	HK-D04/08-A1
Operation control mode	Pressure start and stop
Rated pressure (MPa)	0.8
Maximum pressure (MPa)	1.0
Air flow (M³/min)	0.4
Running speed ( R/min)	3050
Drive mode	Belt drive
Exhaust air temperature ( ºC )	≤ambient temperature + 15 ºC
Exhaust outlet diameter ( Inch )	3/8
Noise dB(A)	58±2
Type of motor	Three-phase asynchronous motors
Motor rated output ( KW)	3.7KW/5HP
Motor frequency ( HZ )	50
Motor voltage ( V )	380
Motor rated current ( A )	7.5
Dimension (MM )	*7207601150*
Weight ( KG )	250

1.Clean Air 100% Oil-Free
Oil-free type compressors can supply clean air.

2.Low noise & Low Vibration
Silent operation and low vibration assure comfortable and quiet work space.

3.Safe Backup Function
Even if one air end fails, another air end automatically replaces it by jump control. Unmanned operation at night has become easy.

4.Easy to Control
High quality microcomputer is mounted. Digital maintenance monitor displays operating conditions, warnings and cautions. Automatic power failures and reset function can be dealt with easily.

5.Compact and Smart Design
There are no extruding handles on the back of machine. Its simple design and reduced installation space required allow it to fit well in any office.

6.Designed especially for medical, pharmacy, laboratory, instrument, coating, chemical industry and food processing, etc.
