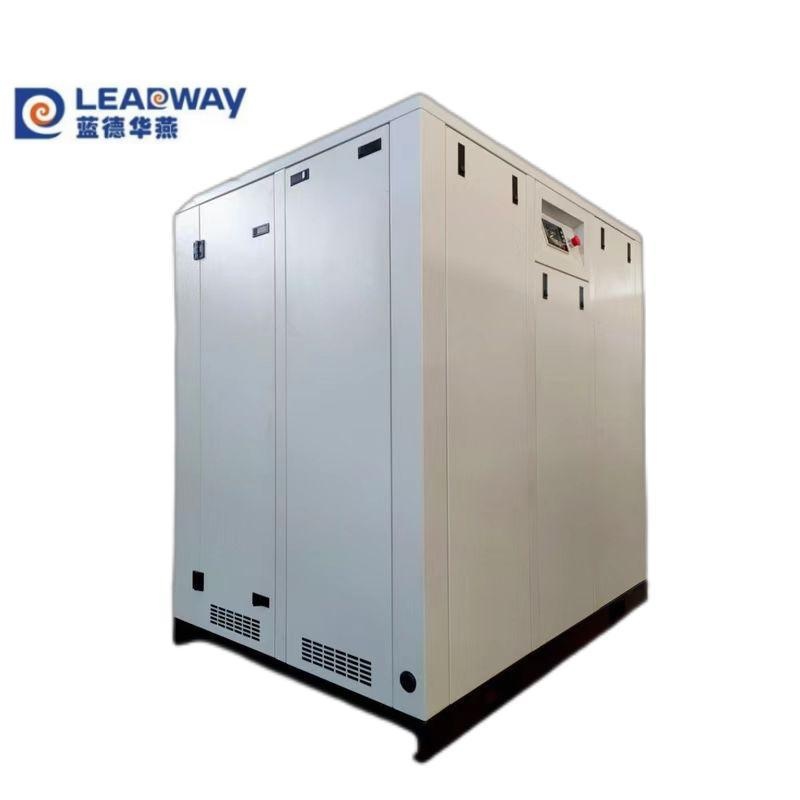

33kw oil free Scroll Air Compressor with Ce for Medical
- Product No.：HK-Z36/08-S1
33kw oil free Scroll Air Compressor with Ce for Medical , use for Laboratory air systems/Semiconductor manufacturing/Electronics production/Cleanroom environments/Precision manufacturing/Biotech applications
Features
Multi Drive Control
Depending on the air requirement, the PC board controls the running of the number of scroll heads. This function not only saves energy but also optimises the operation by keeping to the required pressure.
Low Noise
This compressor compresses air by the scroll head which generates a low noise level between the range of 45dB[A] to 61dB[A], similar to the library and meeting room environment.
Low Vibration
The scroll compressor vibration is so low that when placing pencils in standing position on the compressor top panel, they remain standing even during operation.
Space Saving
This scroll compressor can save space by being installed flat against the wall.
Easy Maintenance
The well designed structure enables easy maintenance. The replacement of air filter only needed at every 2,500 hrs or 1 year, whichever comes first.
Leadway is a leading manufacturer of oil free scroll air compressors, scroll air ends. The products are low noise, low vibration, oil free, silent, easy maintenance,energy Saving, high reliability. They are ideal for
Transportation - electric buses, traditional and hybrid trucks, transit buses, school buses, trains
Medical/Healthcare - instrument air and breathing air
Biotechnology - Laboratory
Automotive - Painting
Food and Beverage
Electronics
Commercial Printing
Drug Manufacturing
We use advanced production equipments and precision examine devices, strict quality control to ensure high quality products . We supply efficient quality services to satisfy customer.
Our Mission is to provide the most technologically advanced oil free scroll air compressor currently available to theChina and international markets.
|
Model |
HK-Z36/08-S1 |
|
Operation control mode |
automatic |
|
Max pressure (MPa) |
0.8/1.0 |
|
Air flow (M³/min) |
3.6 |
|
Running speed ( R/min) |
2900±50 |
|
Drive mode |
Belt drive |
|
Exhaust outlet diameter ( Inch ) |
1” |
|
Noise dB(A) |
65±2 |
|
Type of motor |
Three-phase asynchronous motors |
|
Motor rated output ( KW) |
33KW/45HP（5.5kw/7.5hp x 6 ) |
|
Motor frequency ( HZ ) |
50 |
|
Motor voltage ( V ) |
380 |
|
Dimension ( L xW x H ) (MM ) |
1550*1140*1575 |
|
Weight ( KG ) |
1200 |
Features
Multi Drive Control
Depending on the air requirement, the PC board controls the running of the number of scroll heads. This function not only saves energy but also optimises the operation by keeping to the required pressure.
Low Noise
This compressor compresses air by the scroll head which generates a low noise level between the range of 45dB[A] to 61dB[A], similar to the library and meeting room environment.
Low Vibration
The scroll compressor vibration is so low that when placing pencils in standing position on the compressor top panel, they remain standing even during operation.
Space Saving
This scroll compressor can save space by being installed flat against the wall.
Easy Maintenance
The well designed structure enables easy maintenance. The replacement of air filter only needed at every 2,500 hrs or 1 year, whichever comes first.
Leadway is a leading manufacturer of oil free scroll air compressors, scroll air ends. The products are low noise, low vibration, oil free, silent, easy maintenance,energy Saving, high reliability. They are ideal for
Transportation - electric buses, traditional and hybrid trucks, transit buses, school buses, trains
Medical/Healthcare - instrument air and breathing air
Biotechnology - Laboratory
Automotive - Painting
Food and Beverage
Electronics
Commercial Printing
Drug Manufacturing
We use advanced production equipments and precision examine devices, strict quality control to ensure high quality products . We supply efficient quality services to satisfy customer.
Our Mission is to provide the most technologically advanced oil free scroll air compressor currently available to theChina and international markets.
